Wheel changing device, DFA redesign

Context
Design for Assembly and Automation, RMIT
Team
Team project
Discipline
Manufacturing, Mechatronics
Final CAD model of the wheel changing device
Final CAD model of the wheel changing device

An owner-assisted wheel changing device, redesigned with Boothroyd–Dewhurst analysis to cut assembly time and cost by 68%.

A device that helps a car owner lift, position and align a wheel during installation. It went from concept sketches through iterative CAD modelling to a simplified, portable design.

What I did

  • Developed the concept through iterative sketching and CAD modelling.
  • Quantified the redesign with the Boothroyd–Dewhurst method, simplifying the part and fastener structure.

From the bench

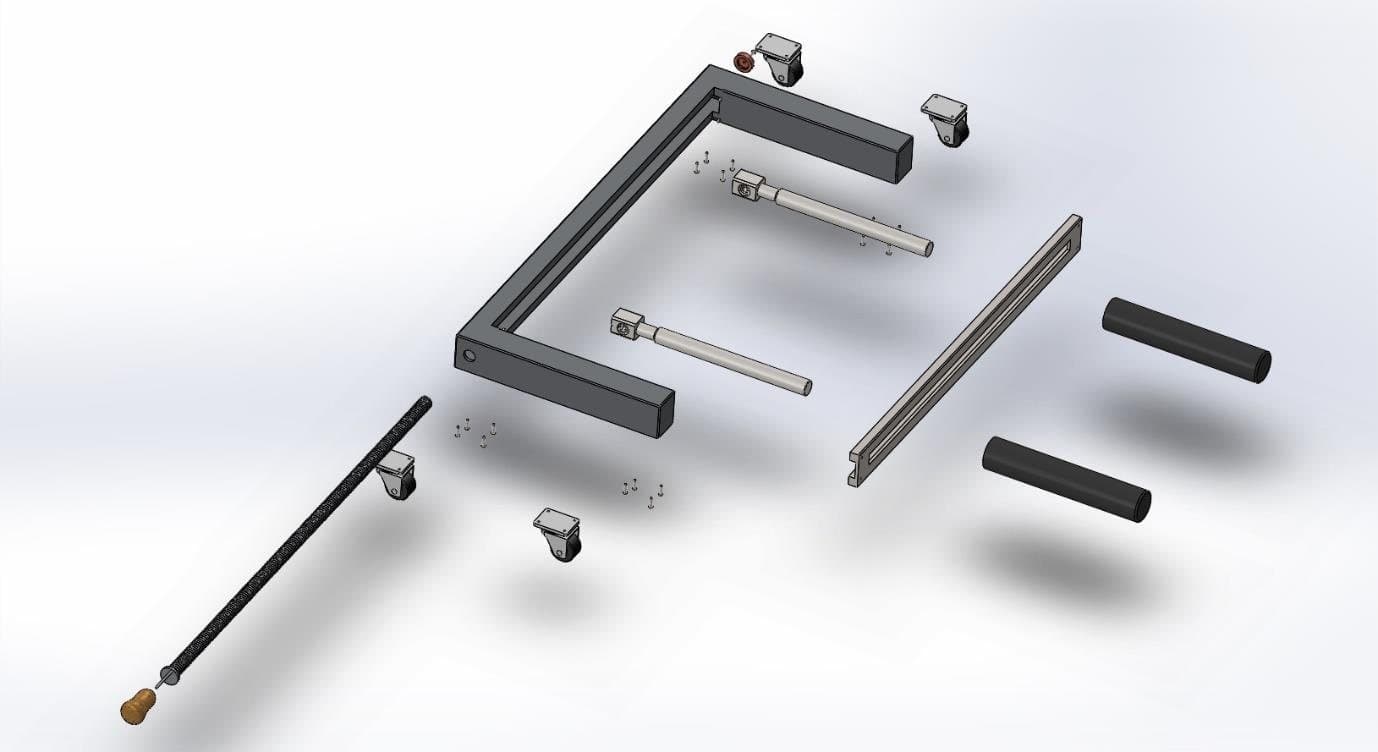

  • Exploded assembly used for the DFA analysis

  • Concept sketch: lift and roll

  • Concept sketch: final arrangement

Exploded assembly used for the DFA analysis
Exploded assembly used for the DFA analysis1 of 3
